3060EN-22B Fluted Reinforced Hard Rock Rotary Drilling Bullet Tooth
3060EN-22B 带凹槽的加固硬质岩石旋转钻钻头

Product Overview

The 3060EN-22B Fluted Reinforced Hard Rock Rotary Drilling Bullet Tooth is a high-performance rock cutting tooth designed for medium-weathered granite, sandstone, limestone, gravel layers, and challenging foundation drilling conditions.

As part of the Hard Rock Rotary Drilling Teeth series, the 3060EN-22B features an enhanced dual fluted and ribbed head design, improving rock chip evacuation while reducing cutting resistance during rotary drilling operations.

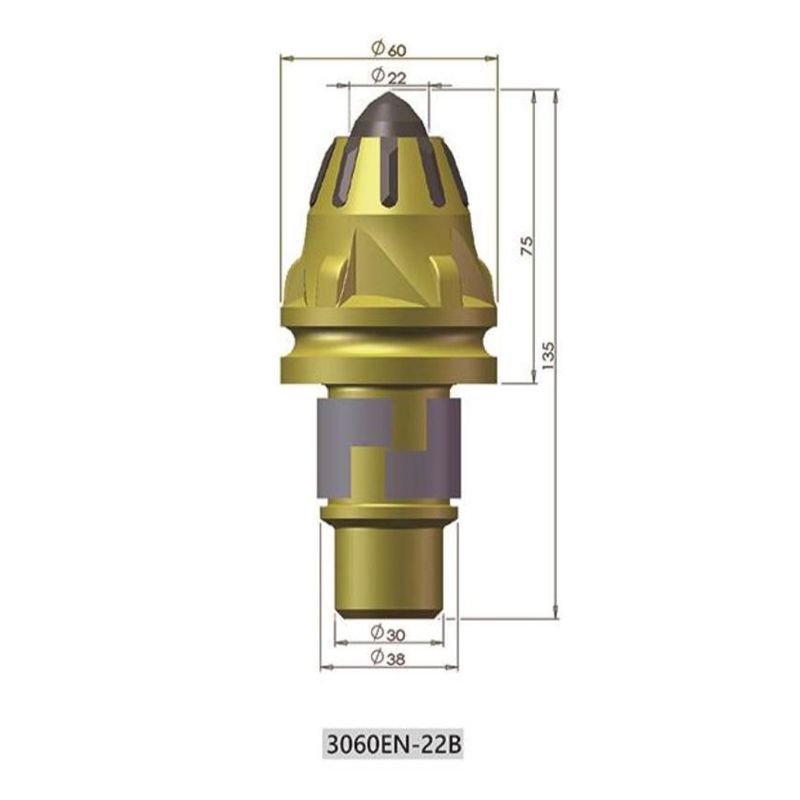

Built with a standard Ø30mm shank system and Ø38mm step collar, this rotary drilling tooth features a reinforced Ø60mm protective shoulder, 75mm gauge length, and 135mm overall length.

The optimized body structure combines angled clearance flutes, raised flow ribs, and a high-toughness Ø22mm tungsten carbide insert to achieve efficient penetration, stable rotation, and extended tool performance in demanding geological conditions.

Manufactured from forged 42CrMo alloy steel, the 3060EN-22B provides excellent mechanical strength, wear resistance, and reliable operation for professional foundation drilling contractors worldwide.

Technical Specifications  技术规格

Key Features & Performance Advantages
关键特性与性能优势

1. Dual Fluted & Ribbed Debris Clearance Design

The advanced dual flute and raised rib structure improves the removal of rock cuttings during drilling.

The optimized geometry helps:

• Accelerate chip evacuation
• Reduce clogging
• Lower drilling resistance
• Improve penetration efficiency

This design is especially effective in mixed geological conditions containing rock fragments and gravel.

2. Ø22mm High-Toughness Tungsten Carbide Tip

The Ø22mm tungsten carbide insert provides an excellent balance between impact resistance and wear performance.

Advantages include:

• High fracture toughness
• Stable cutting ability
• Improved penetration efficiency
• Reduced carbide breakage

Suitable for:

• Granite
• Limestone
• Sandstone
• Weathered rock
• Gravel formations

3. Ø60mm Reinforced Protective Shoulder

The enlarged Ø60mm head body provides additional protection around the cutting area and holder system.

Benefits include:

• Reduced holder wear
• Improved structural stability
• Better cutting support
• Longer operating intervals

4. Optimized 75mm Gauge Length

The 75mm gauge length with 135mm overall length provides efficient cutting clearance during deep drilling operations.

Advantages:

• Better rotation space
• Faster debris discharge
• Reduced torque resistance
• Improved drilling productivity

5. Forged 42CrMo Steel Body & Self-Rotation

The tooth body is manufactured from premium 42CrMo alloy steel with heat treatment for enhanced strength.

The forged structure provides:

• High bending resistance
• Excellent fatigue strength
• Superior shear performance
• Long service life

The 360° self-rotation system ensures:

• Uniform wear distribution
• Self-sharpening effect
• Stable drilling performance

Applications & Compatible Equipment
应用程序及兼容设备

The 3060EN-22B Hard Rock Rotary Drilling Bullet Tooth is designed for professional rotary drilling and foundation construction applications.

Typical Applications:

• Building foundation piling
• Bridge pier construction
• Infrastructure projects
• Rock excavation
• Mixed soil-rock drilling
• Gravel and weathered rock formations

Compatible Equipment:

Suitable for:

• Rotary drilling rigs
• Rock core barrels
• Rock drilling buckets
• Cleaning buckets
• Foundation drilling attachments

Why Choose 3060EN-22B Hard Rock Rotary Drilling Tooth?
为什么选择 3060EN-22B 硬岩旋转钻钻头？

✔ Dual fluted and ribbed design for faster debris removal
✔ Ø22mm tungsten carbide tip for efficient rock penetration
✔ Ø60mm reinforced body for improved holder protection
✔ Forged 42CrMo steel body for durability
✔ Reduced drilling resistance and improved productivity
✔ Smooth 360° self-rotation for uniform wear
✔ Suitable for mixed rock and foundation drilling conditions
