Product Overview

The 3050CF-19 Wear-Resistant Fluted Rotary Drilling Bullet Tooth is an advanced foundation drilling wear part engineered for highly abrasive soil, heavy sand conditions, sticky clay formations, and challenging ground applications.

Also known as a fluted piling tooth or fast-clearing rotary drilling tooth, the 3050CF-19 features a unique longitudinal flute design on the conical head, improving cutting discharge efficiency and reducing material buildup during continuous drilling operations.

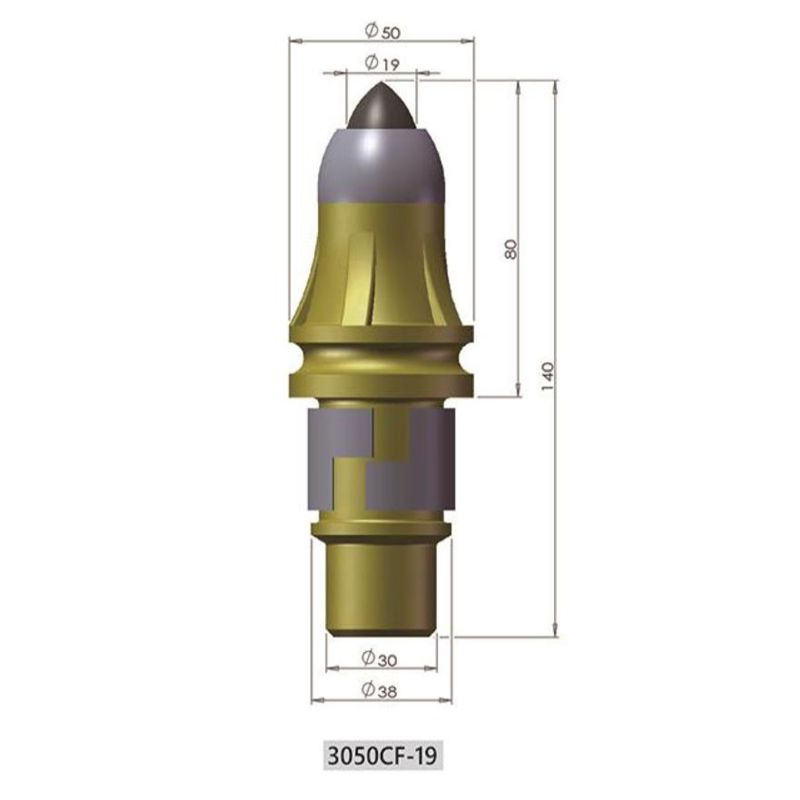

Built with a standard Ø30mm shank, a maximum head diameter of Ø50mm, and an extended 80mm gauge length, this rotary drilling tooth provides excellent clearance, faster penetration, and improved wear resistance.

The combination of a high-toughness Ø19mm tungsten carbide insert, forged 42CrMo alloy steel body, and anti-wear fluted design delivers reliable performance in abrasive formations while helping reduce downtime and replacement costs.

Designed for professional foundation drilling contractors worldwide, the 3050CF-19 is an ideal solution for rotary drilling rigs, rock augers, drilling buckets, and deep foundation construction projects.

Technical Specifications

Key Features & Performance Advantages

1. Longitudinal Fluted Anti-Wear Design

The 3050CF-19 features specially engineered longitudinal flutes (grooves) along the conical head.

During rotation, these channels help:

• Improve rock cutting and soil discharge
• Reduce debris accumulation
• Minimize slurry buildup
• Decrease steel body abrasion

The fluted body design improves drilling efficiency, especially in:

• Sandy formations
• Sticky clay
• Gravel layers
• Abrasive soil conditions

2. Extended 80mm Gauge Length for Improved Clearance

The extended 80mm gauge length provides greater tooth exposure compared with standard rotary drilling teeth.

Advantages include:

• Improved cutting clearance
• Deeper penetration per rotation
• Reduced drilling resistance
• Higher drilling efficiency

The 140mm overall length design helps optimize performance in deep foundation applications.

3. High-Toughness Ø19mm Tungsten Carbide Insert

Equipped with a premium Ø19mm tungsten carbide tip, the 3050CF-19 provides excellent impact resistance and wear durability.

The optimized carbide grade delivers:

• High fracture toughness
• Strong impact absorption
• Reduced carbide chipping
• Long operating life

It ensures stable cutting performance under continuous rotary drilling conditions.

4. Forged 42CrMo Alloy Steel Body

The tooth body is manufactured from forged 42CrMo alloy steel and precision heat-treated to HRC 48-52.

The high-strength steel structure provides:

• Excellent bending resistance
• Superior shear strength
• Strong fatigue durability
• Reliable performance under high torque

5. 360° Self-Rotating & Self-Sharpening Performance

Designed for standard Ø30mm rotary drilling tooth holders, the 3050CF-19 allows smooth 360° rotation during operation.

The self-rotating design provides:

• Uniform wear distribution
• Continuous self-sharpening effect
• Stable penetration performance
• Extended tooth service life

Applications & Compatible Equipment

The 3050CF-19 Fluted Rotary Drilling Bullet Tooth is widely used in foundation construction and ground excavation projects.

Typical Applications:

• Bridge foundation piling
• Building foundation drilling
• Diaphragm wall construction
• Underground infrastructure
• Bored pile projects
• Sandy soil and clay excavation
• Abrasive ground drilling

Compatible Equipment:

Suitable for:

• Rotary drilling rigs
• Drilling buckets
• Core barrels
• Rock augers
• Reamers
• Foundation drilling attachments

Why Choose 3050CF-19 Fluted Rotary Drilling Bullet Tooth?

✔ Fluted body design for faster cutting discharge
✔ Excellent performance in sand and sticky clay formations
✔ Ø19mm tungsten carbide tip for reliable cutting strength
✔ Forged 42CrMo steel body for high durability
✔ 80mm extended gauge length for improved clearance
✔ Reduced steel wear and longer service intervals
✔ Compatible with standard Ø30mm drilling holders
